| Brand Name: | BAXIT |
| Model Number: | BXT-HT3500 |
| MOQ: | 1unit |
| Price: | USD4715/unit |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |

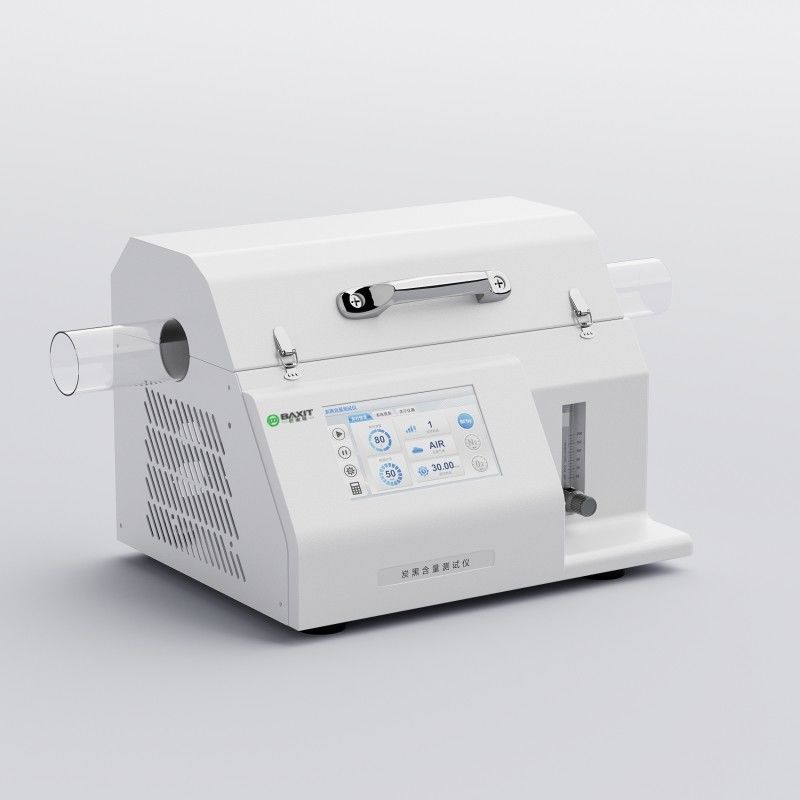

BAXIT Carbon Black Content Tester BXT-TH3500
Instrument Introduction
The carbon black content tester is suitable for determining the carbon black content in polyethylene, polypropylene, and polybutene plastics. The testing of carbon black is obtained by weight analysis of the sample after high-temperature decomposition under nitrogen protection. This instrument has the advantages of easy use, simple operation, accurate measurement, high precision, and high degree of automation.
Instrument usage
The carbon black content is an important technical indicator in product performance, and the amount of content has a certain impact on the hardness, elasticity, wear resistance, and insulation of the material.
Main features
u Adopting an open lid furnace structure, it is convenient to place samples and has better heat dissipation effect
u The furnace adopts an ultra long heating unit, which can test 4 sets of samples simultaneously, greatly improving testing efficiency.
u The software comes with a built-in calculation function, which can automatically calculate the carbon black content and ash content with just one click, making it very convenient and fast.
u Adopting PID precise temperature control, with high temperature control accuracy, wide temperature range, and high uniformity of furnace temperature.
u 7-inch LCD touch screen display, one click operation to start, set constant temperature time, high constant temperature accuracy;
u Intelligent programmable control, capable of setting multiple segmented heating programs.
Technical Parameter
|
1 |
Temperature range |
Room temperature~1000℃ |
|
2 |
Display mode |
7-inch wide touch screen |
|
3 |
Quartz tube size |
Ф45mm*600mm |
|
4 |
Furnace chamber size |
Φ45mm*350mm |
|
5 |
Heating element |
High temperature alloy resistance wire |
|
6 |
Heating zone length |
260mm |
|
7 |
Temperature control mode |
Multiple segmented heating programs can be set up, automatically memorizing temperature setting segments |
|
8 |
Sensor sensitivity |
0.1℃ |
|
9 |
Gas path control |
Two channels, the program can automatically switch |
|
10 |
Number of test samples |
Test 4 sets of samples at once |
|
11 |
Cooling mode |
Open lid design, quick cooling, reduces testing cooling time |
|
12 |
Data calculation |
The software comes with built-in calculation function, one click calculation; Can automatically calculate carbon black content and ash content |
|
13 |
Working power supply |
AC 220V/50Hz |
|
14 |
Power |
600W |
|
15 |
Overall dimensions |
416*325*289mm |
Reference standards
u GB/T2951.41-2008 "General Test Methods for Insulation and Sheath Materials of Cables and Optical Cables"
u GB/T3515-2005 "Rubber - Determination of Charcoal Content - Pyrolysis Method"
u GB/T13021-1991 "Polyethylene pipes and fittings - Determination of carbon black content - Thermogravimetric method"
u GB/T13663.2-2018 Polyethylene (PE) piping systems for water supply - Part 2: Pipes
u YDT 837.3-1996 "Test Methods for Copper Core Polyolefin Insulated Aluminum Plastic Composite Sheath Urban Communication Cables Part 3: Mechanical and Physical Performance Test Methods"
u ISO 6964, GB/T 13021, IEC 60811-4-1, GB/T 2951.41, JTG E50 T1165, etc.
|
|
